Ziflow administrators or Enterprise licensed users with custom permissions can set up flows.

Available on: Pro Enterprise

In addition to connecting your Trello account, you will need to connect your Ziflow app. See Connect your Ziflow app.

If you are new to Ziflow automation flows and need an introduction, read Understand automation flows (Connect).

Basic flow creation

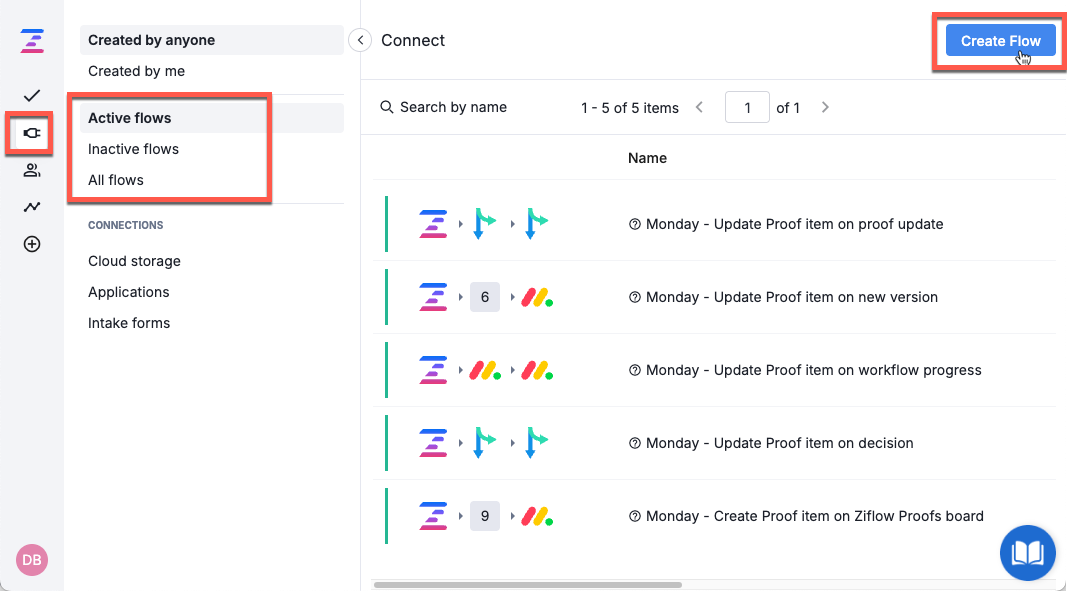

Select Connect in Ziflow’s main navigation and select Create Flow.
Select Ziflow as your flow’s application source. If you don't see it, follow the instructions in Connect your Ziflow app.
Enter a name for your flow.
Select the event that will start the flow. See Ziflow events for a list of all Ziflow events and details on each setting.
Add Trello Zibots to the flow.

Create a Trello card on new proof creation

Once Ziflow is connected with Trello, you can start setting up automated flows. This flow example adds cards to a Trello list when a new proof is created in Ziflow.

This flow will add an issue in Jira when you create a new proof.

Start with a Basic flow creation and select Ziflow as your application source.

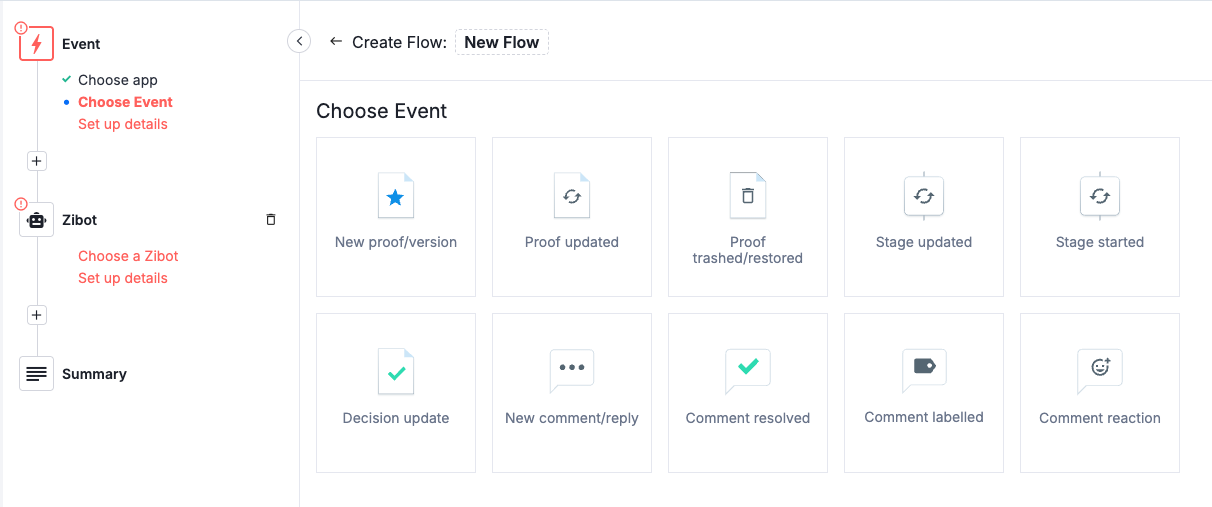

Select the New Proof/Version Ziflow event, configure, and select Next.

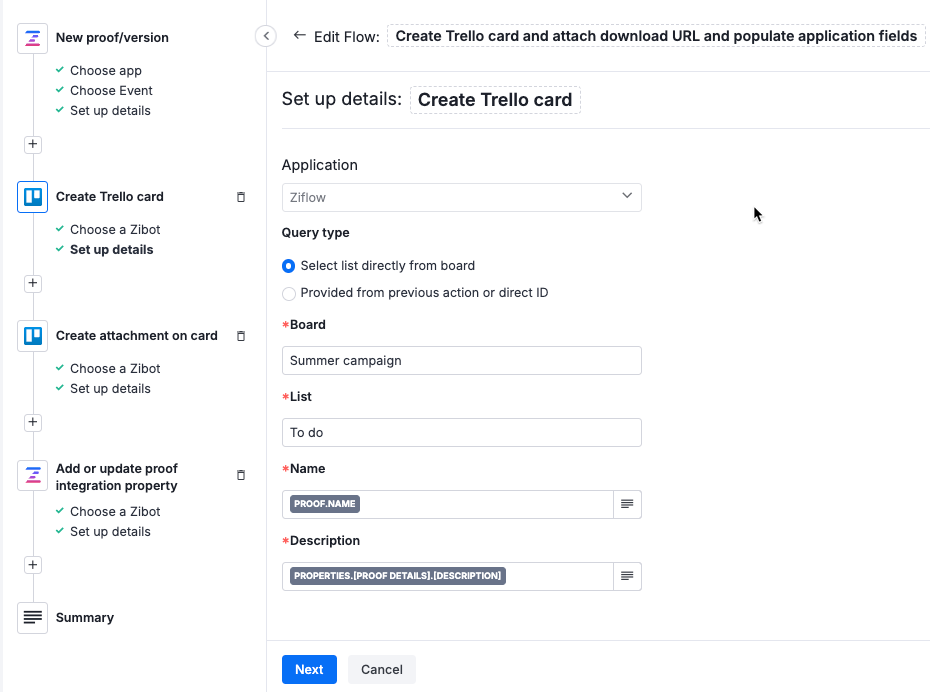

Select the Create a Trello card Zibot.
Selected the Board and List. For the card name and description, you can use tokens.

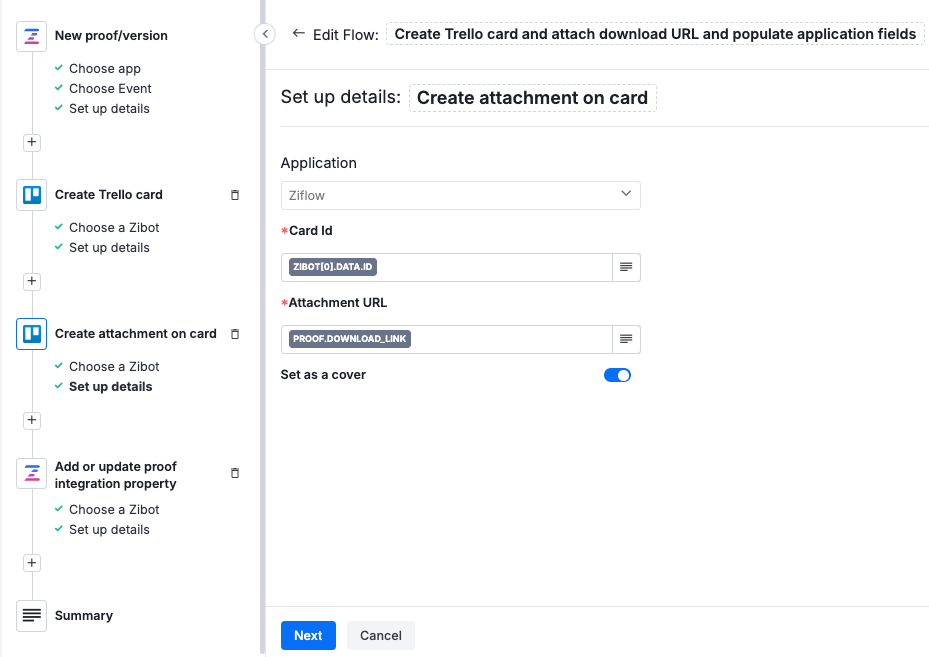

Add the Create attachment on card Zibot to include the original file image link in the Trello card. For the Card ID, you can select the card ID token coming from the previous Zibot. For the attachment URL, select the PROOF.DOWNLOAD_LINK token.

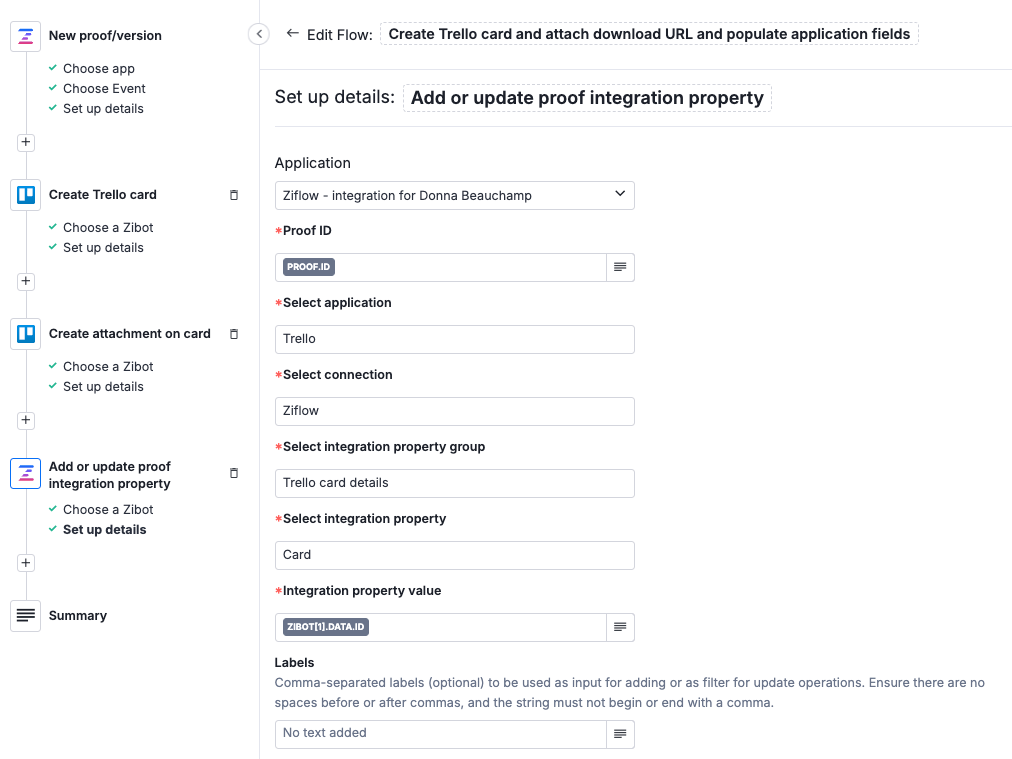

Add the Add or update proof integration property Ziflow Zibot to populate the application fields of the proof with information sourced from Trello.
Configure the Add or update proof integration property Zibot. For information about the Zibot, see Add or update proof integration property.
Save and turn on the flow as a last step of flow configuration.
Test your automated flow by adding a new proof in Ziflow and verify that a Trello card is created.
